Description
Old Part Numbers: CI050000PC, CI070000PD, TF2111, TF2511, CI050000PD, TF2101, TF2501
View AllClose
NOTE: This replacement pump is a splash lubricated pump (original pump was a pressure-lubricated pump). This part number replaces both the TF2101 and TF2111 pumps.
- Rated for heavy-duty commercial use in new or replacement applications
- Stainless steel valves for long life
- 175 Maximum PSI
- Oil level sight glass for easy checking
- Designed for 80/20 duty cycle
- Low pump RPM
- 16.6 free air CFM at maximum pressure
- 700 pump RPM
- Two-quart oil capacity
- Flywheels have two grooves for B-section belts
If you have questions, call our sales department. OEM replacement Pump with Flywheel.
Click on the Specs tab for more info.
Specifications

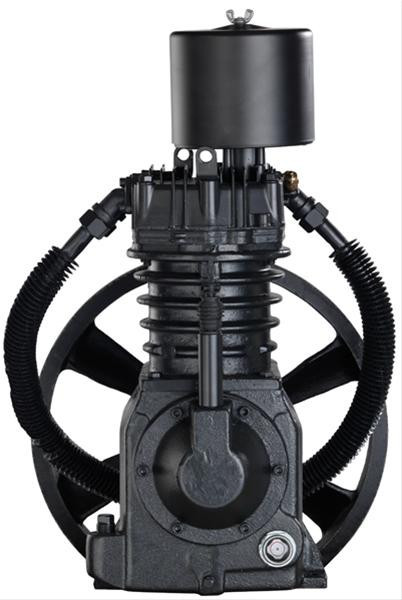

7.5 HP Two-Stage Air Compressor Pump
- 175 Maximum PSI
- Oil level sight glass
- Designed for 80/20 duty cycle
- Low pump RPM
- 24.3 free air CFM at maximum pressure
- 1020 pump RPM
- Two quart oil capacity
- Flywheels have two grooves for B-section belts
- Rated for heavy-duty commercial use in new or replacement applications
- Stainless steel valves for long life
- Warranty: 1 Year Lmt
- Weight: 130.00 lb
- Length: 21.00 in
- Width: 20.00 in
- Height: 26.50 in
Extra Details
Use as a replacement pump with the following Campbell Hausfeld compressor models:
CI071080VMS, CI12G030H, CE7000, CE7001, CE7002, CE7003, CE7004, CE7005
CE7006, CE7000FP, CE7001FP, CE7005FP, CE7006FP, EX8006, EX1230, TF211201AJ
Use as a replacement pump with the following Speedaire compressor models:
5F563, 5F565, 5F566, 5Z639, 5Z639, 3JR80, 9H805, 5F565, 4LW38
