CAP2040P-OF #01A23D
Loading Schematic
Repair Parts for the Bostitch CAP2040P-OF Oil-Free Direct-Drive Electric Air Compressor
Â
Please Note: The head and valve plate assembly has been upgraded for this model which includes new style valves, gaskets and an air filter element on the head. See parts list below schematic for information regarding that part.
Â
Manuals
Â
Video
Watch the video below for a complete, start-to-finish installation guide for the AB-9429999 Valve Plate Kit
Â
-
105-135 PSI Generic WuxiHX-Style Pressure Switch #099A23
SBD-COMBINED
Price: $69.74Order if over-pressurizing. If leaking through bottom line, order (105). If your pressure switch is leaking out of the small bleeder valve (after the unit shuts off), then order a tank check valve instead. The pressure switch (and/or bleeder valve) is...AB-9063096-SBDPrice: $69.74 -
Price: $41.18 -

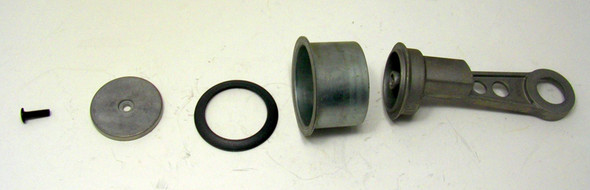

Piston/Conrod Kit #05C10E
Master Tool Repair
Price: $37.80Kit includes Connecting Rod/Piston, Piston Ring, Screw, Piston Cover and Cylinder. Everything needed to restore compression! Click here on how to install this type of kit properly. Technical DocumentsClick here on how to install this type of kit...A610101ConRodKit-MTRPrice: $37.80 -
Price: $25.34 -
Price: $24.33
-
Safety Valve #099AA0
SBD-COMBINED
Price: $21.34Old Part Numbers: AB-9049049, 5140028-14If your valve leaks below the pressure listed on the side of the valve, replace this vital safety feature.5140206-63-SBDPrice: $21.34 -

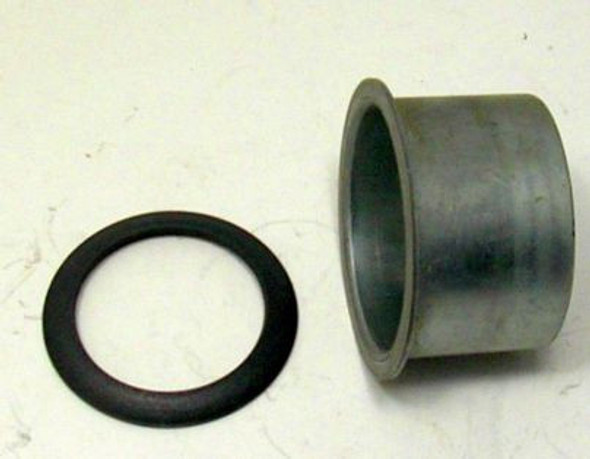

Cylinder/piston Ring #05BFF2
Master Tool Repair
Price: $20.91Replace if scratched, worn or poor compression.A631000/9040019-MTRPrice: $20.91 -
KIT HEADVALVE PLATE ASSY #05C703
NuAir / Fini
Price: $20.61Poor performance or air leaks out of the intake filter while the unit is running? The valve plate assembly is probably the problem.9429999-NUPrice: $20.61 -
Pump Head #099C9E
SBD-COMBINED
Price: $19.57This part is the head only. You will need to order new style head and valve plate assembly part # AB-9429999 to get the valve plate.AB-A661400-SBDPrice: $19.57 -

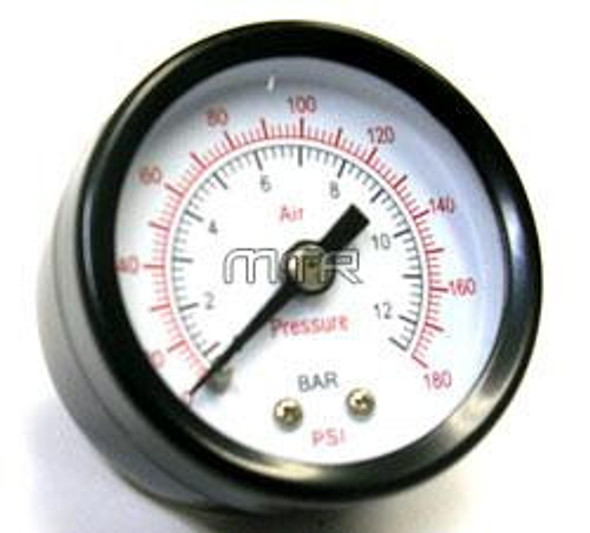

Pressure Gauge, Metric #099A21
SBD-COMBINED
Price: $19.21Old Part Numbers: AB-90520920-180 PSI, 1/8" METRIC, BACK MOUNT, 1.65" Face for Regulator.AB-4100606-SBDPrice: $19.21 -
Price: $15.34 -
Industrial Interchange Coupler 1/4" #0999CF
SBD-COMBINED
Price: $14.20Old Part Numbers: HF102500AV1/4" Body x 1/4" MPTAB-9412204-SBDPrice: $14.20
